Magic Motor Electrical Safety and Troubleshooting Training System

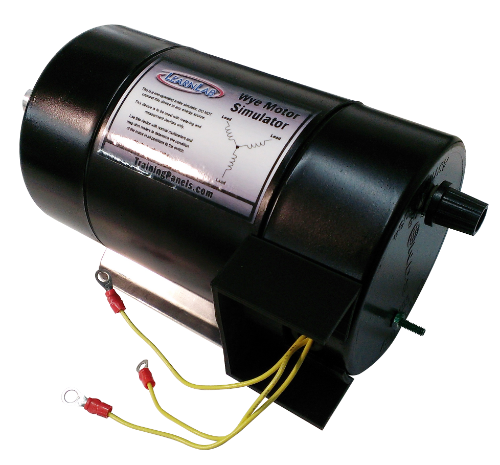

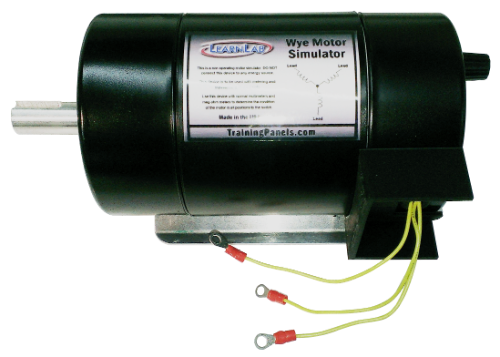

LearnLab’s Magic Motor Training System is an advanced electrical safety and motor diagnostics trainer that simulates real-world electric motor behavior. With a single switch, users can transform a normally operating three-phase induction motor into one of five common failure conditions—perfect for teaching motor troubleshooting, safety, and diagnostics in industrial and technical education environments.

What’s Included

• Magic Motor simulator with six-position selector switch
• Failure simulations:
  • Normal working motor
  • Open winding
  • Shorted winding
  • Compound shorted winding
  • Short to ground
  • Low insulation resistance (megger test)
• Student workbook (PDF)
• Instructor guidebook
• PowerPoint presentation
• Online companion course

Training Focus

The Magic Motor training system helps students safely analyze and diagnose electrical faults without risk of live motor damage. Each simulation behaves and tests exactly like a real motor, allowing learners to measure voltage, resistance, insulation, and continuity using standard test instruments.

Who Benefits

• Maintenance and repair technicians
• Electricians and electronic technicians
• Engineering and industrial technology students
• Machine and process operators
• Career and technical education programs

Learning Outcomes

• Identify and troubleshoot common three-phase motor faults
• Understand motor winding and insulation failures
• Apply safe electrical testing and diagnostic methods
• Prevent costly misdiagnosis of electric motors
• Develop practical skills for industrial maintenance and repair

LearnLab Training Systems deliver proven hands-on electrical safety education tools that replicate real-world scenarios. The Magic Motor panel is essential for any electrical or maintenance training lab seeking to improve diagnostic accuracy and motor safety awareness.
