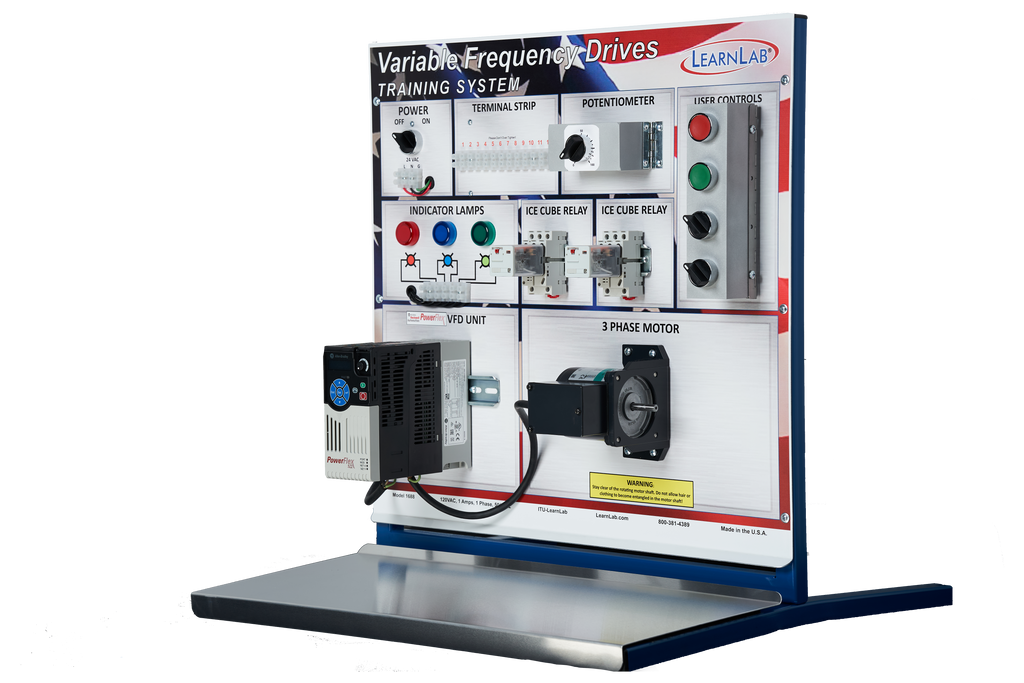

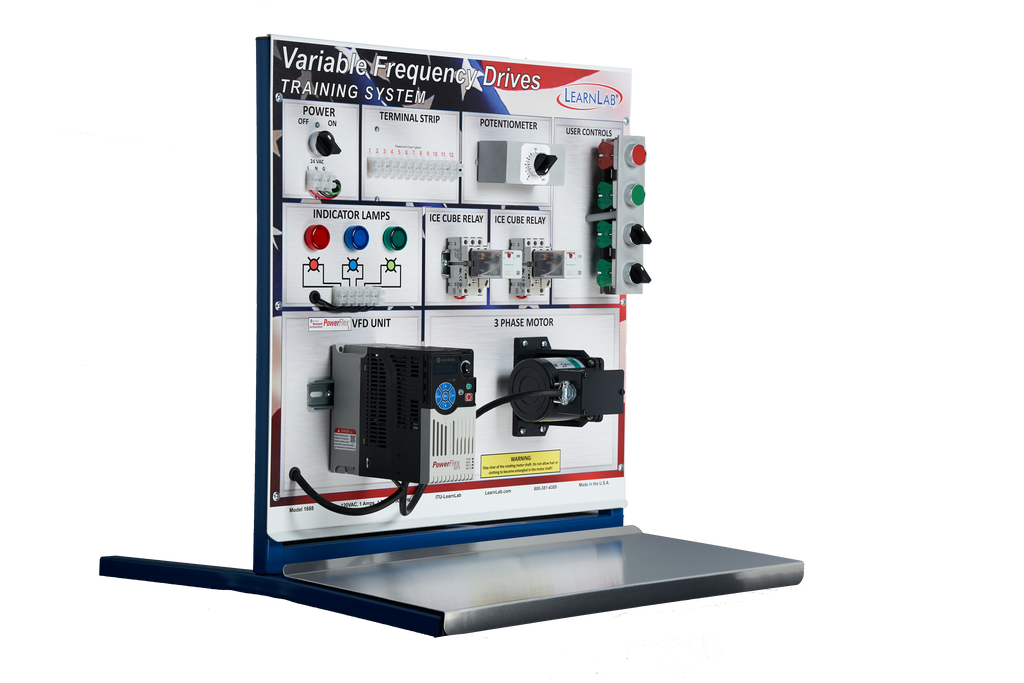

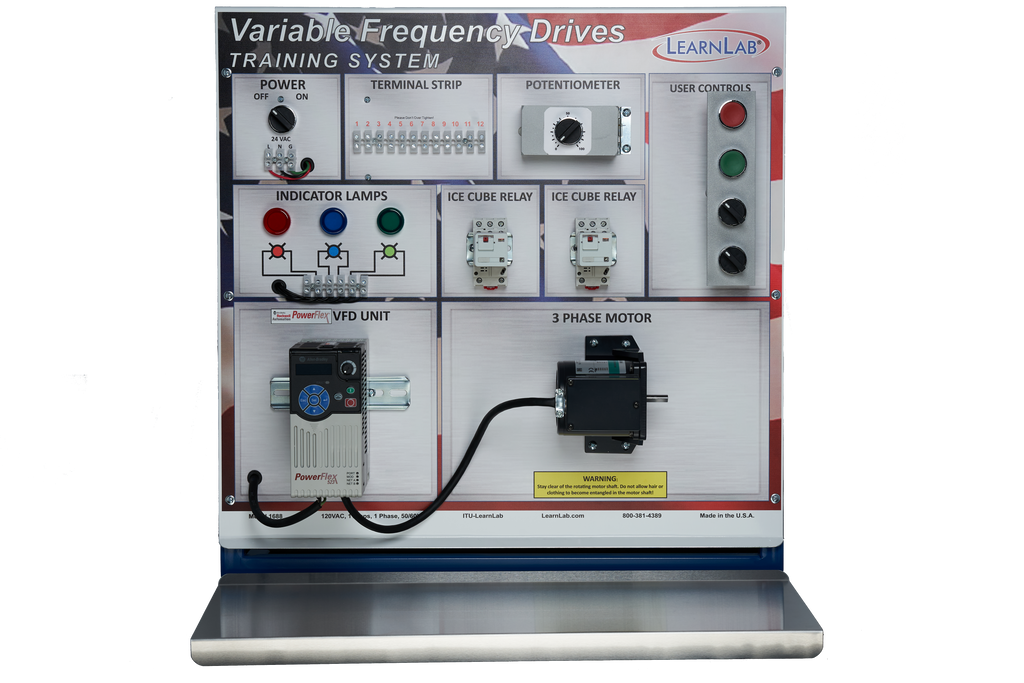

Advanced PowerFlex Series VFD Training System

Train students and workers on real, energized electrical circuits using a Variable Frequency Drive (VFD) to control a three-phase motor. Also known as AFD, VSD, AC drive, microdrive, or inverter drive, VFD technology regulates motor speed for HVAC fans, pumps, and machine drives to match system demand and improve efficiency.

This system features the Allen-Bradley PowerFlex 5 Series VFD and supports electrical safety training, measurement, and fault-finding on authentic field I/O.

What’s Included

• Allen-Bradley PowerFlex 5 Series VFD
• Industrial panel indication
• Ice cube control relays
• Industrial stop-start controls
• Selector switches
• Three-phase wye-wound induction motor
• Rheostat / analog signal interface (0–10 V and 4–20 mA)
• Flight Case portable enclosure

Skills You Can Teach

• VFD theory, internal operation, and history
• Safe installation, commissioning, and maintenance
• VFD programming basics and advanced parameters
• Field I/O control theory and wiring
• Three-phase inverter-duty motor troubleshooting
• 0–10 V and 4–20 mA signal generation and scaling
• Top parameter navigation and fault diagnostics
• Multiple real-world hands-on labs (up to 16 classroom hours)

Why Portable?

Flight Case Series for on-the-road and classroom use:

• ABS + aluminum outer case; aluminum and welded steel inner panel
• Fold-up frame with locking device
• Industrial butterfly latches for long life
• Gasket-sealed lids resist dust and moisture
• Dimensions: 20″ × 21″ × 10″; stores out of sight

Note: LearnLab is not affiliated with Allen-Bradley or its affiliates. Don’t forget the adapter cable.
